Launch X431 PAD V Link Automotive Diagnostic Tool Support Coding and Programming.
LAUNCH X431 PAD V Link is a brand-new high-end car fault diagnostic device developed by Launch. Integrating the launch excellent diagnostic technology and made many improvements and innovations.

3 Years Update Free

Launch X431 PAD V

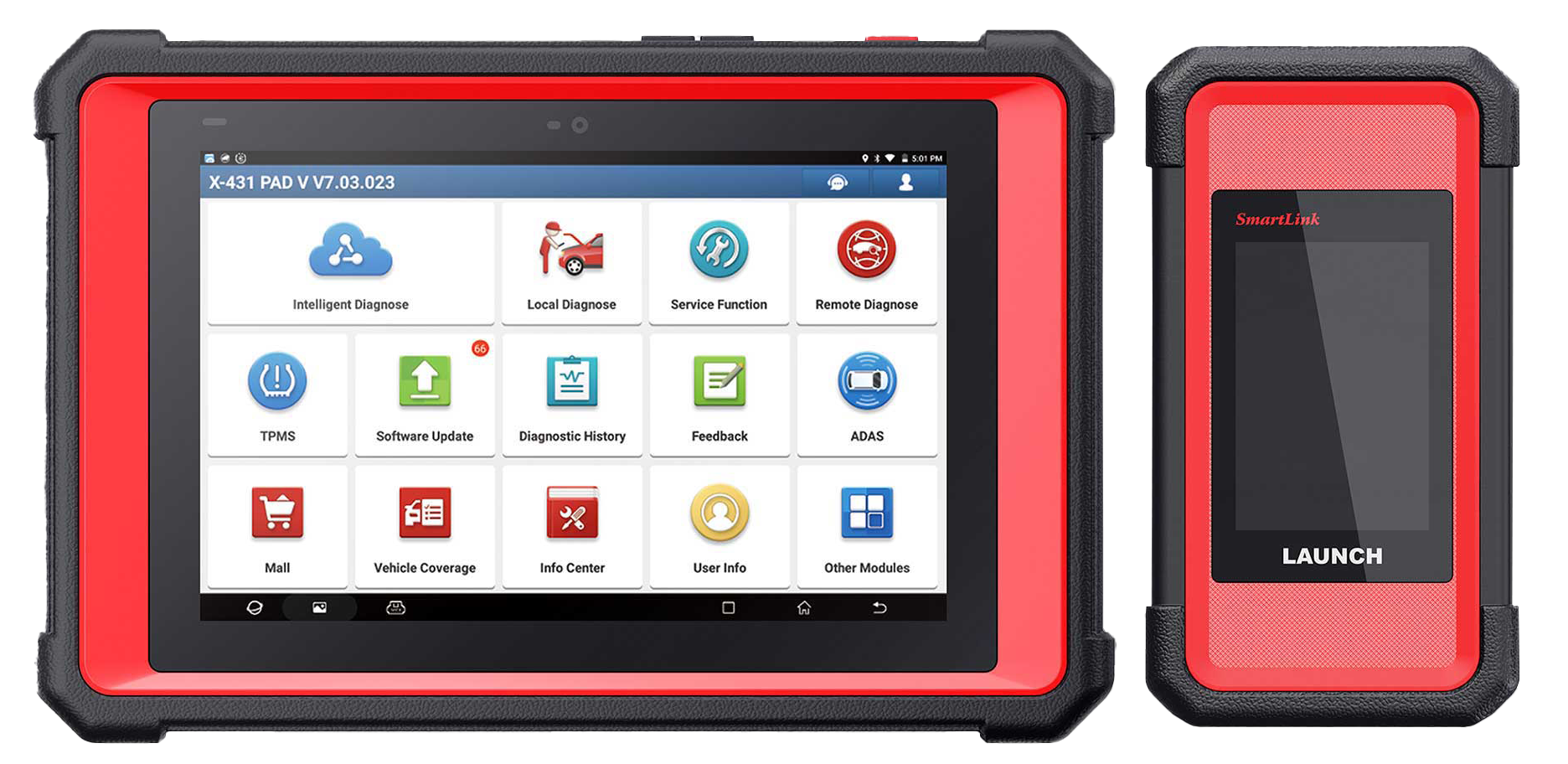

Launch X431 PAD V Link Automotive Diagnostic Tool


Launch X431 PADV Link Automotive Diagnostic Tool Support Coding and Programming is Launch's latest top end car comprehensive diagnostic scan tool based on the Android 7.1 system. It inherits Launch's many advantages in car fault diagnostic technologies, including large car model coverage, powerful functions, a large number of special functions, and accurate test data. With it's new advanced Smartbox 3.0 Launch X431 PAD 5 Link could diagnose the passenger and heavy duty vehicles (software and adapters are optional) with one single dongle. And to make it better, it also have the built-in J2534 adapter to make the Launch X431 PAD5 one of the most powerful scan tool in the market. X431 PAD V Link also supports LAUNCH's extension module applications for oscilloscopes, sensors, endoscopes, multi-meters, and battery detection etc.
Its operation is easier and more intuitive, Launch X431 PAD V Link includes a package of "Full" vehicle brands (more than 80 brands), with the most important European, Asian and American vehicle manufacturers, together with the full potential of LAUNCH diagnostic software. Able to diagnose cars, commercial vehicle and also industrial vehicle (12 and 24 V). The PAD V Link is compatible with the J2534 and ISO22900 (Pass Thru) communication protocols, in this way you can connect to the manufacturer's website and perform programming among many other functions.


Launch X431 PAD V Link Features:

  • Android 7.1 customized system, Qualcomm 8-core processor, 10.1 inch capacitive touch screen, support QC3.0 fast charging.
  • 2.4GHz&5GHz Dual-Frequency Wi-Fi, the transmission rate is faster than the previous generation.
  • Support commercial vehicle and passenger car diagnose, Support J2534, CAN FD, DoIP.
  • Wide mode coverage, powerful and a large number,of diagnostic functions, and accurate test data.
  • Brand new industrial design, with soft rubber sheath on the four corners of the product, to effectively prevent collision; damping shaft, free adjustment of nearly 180 degrees; support three modes of hanging, support and normal.

Product Specifications:

Item X-431 Pad V
Processor: 8 core Cortex-A53 2.0GHz
Cache 4GB
Hard Disk 64GB, 128G extended
System Android 7.1
Screen 10.1 inch full-fitting, sunlight readable screen (Gorilla Glass)
Resolution 1920*1200
Wi-Fi Support 2.4GHz&5GHz dual frequency
Camera: Rear13 Megapixels, front 8 Megapixels
Diagnostic Mode Wi-Fi
Work Temperature -10 ~ 50℃
Dimension 320×211×46mm

Launch X431 PAD5 Link Functions:

  • Comprehensive diagnosis: Support full-make, full-system, full-function rapid diagnosis, read DTC, clear DTC, read data stream, actuation test, etc.
  • Intelligent diagnose: Support intelligent VIN identification and cloud-based diagnostic record query, making the diagnostics more intelligent and efficient.
  • Local diagnose: When the intelligent diagnosis is not available in an environment without network, choose traditional diagnosis. Select the vehicle make and model manually to perform the vehicle detection.
  • Remote diagnose: Support online real-time communication and remote diagnostic service through text, picture, and file between device and device, and between device and remote desktop, with low network bandwidth and system resources occupancy.
  • Special function: Support total 16 special functions, including service lamp reset, throttle adaptation, steering angle reset, brake pad reset, tire pressure reset, anti-theft matching, ABS bleeding, battery matching, gear learning, injector coding, DPF regeneration, sunroof initialization, headlamp matching, suspension matching and AT matching, EGR Adaption
  • Software upgrade: Support one-click upgrade of operation system, client side, car model software and firmware.
  • Diagnostic feedback: For model software and function errors met during the use, please submit the feedback immediately. LAUNCH will response as soon as possible.
  • My report: View comprehensive diagnostic report, remote diagnostic report, and data stream playback.
  • Settings: Contains my connector, diagnostic connector connection management, connector activation, firmware repair, etc.
  • Extended module: Support oscillograph, sensor, battery test, endoscope, Wi-Fi printer, etc.

Main Parameters

Main structure: Dual processor: Cortex – A7 + Cortex – M7
System Linux
Memory 256M
Storage 8GB
Power supply DC 9 ~36V

External Interface

USB Type B USB 2.0
Bluetooth BLE 4.0 + EDR
WIFI Support 2.4G/5GHZ dual-band
Indicator lamp 5 multi function indicator lamps
Vehicle connection J1962 16PIN
