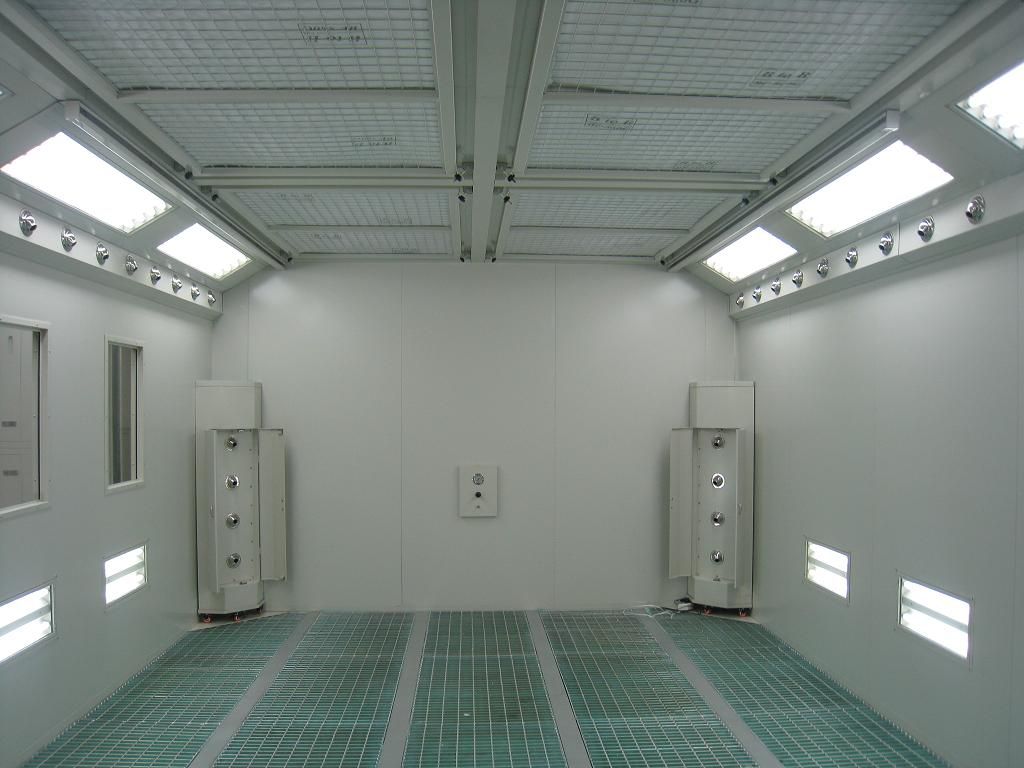

Launch CCH101 Car paint booth: model is the most basic model of the car paint booths offered by Launch Middle East and Africa, but with features and performance that are well above its price. This Car paint booth has a 7.5 kW drive turbine, generates a total power of 9 kW, with an average cabin ventilation speed of 0.29m / s, and its painting / drying cycle is automatic. In addition, this workshop paint booth has a market-leading burner and the interior panels are lacquered for better cleaning, the base is included and does not include air inlet or outlet pipes. Moreover LAUNCH uses in its painting booths and groups of thermo-ventilation, centrifugal fans with high pressure inverted blades and balanced guaranteeing minimum vibration. The main characteristic of this turbine is its large air flow and, above all, to be able to maintain said flow despite the pressure drops derived from filters, outlet pipes and their length, etc…, for this reason they are designed for industrial installations and car paint booths. In addition, direct coupling (without belts or pulleys) with the motor, eliminates power dispersions around 15/20%, pitch, etc. ...

Constant air flow, even if the dirt in the plenum filters increases. Superior filter life (by maintaining air passage velocity). Lower maintenance cost (replacement of belts, noise, imbalances).

Features:

  • Overall dimension(m):7.0*5.3*3.5.
  • Inner dimension(m):6.9*3.9*2.7
  • Width of door for entrance of vehicle(m):3.0
  • Height of door for entrance of vehicle(m):2.7
  • Steel plate thickness(mm):0.326
  • Filtrated area(m2):20
  • Air flow volume(m3/h):24000.
  • Air velocity within booth(m/s):0.25~0.35
  • Ventilation times(times/hr):265
  • Working temperature(°C):60~80
  • Oil consumption(kg/set):6~8
  • Power(kw):9.5
  • Main blower:One unit 7.5KW European style professional blowers
  • Nether lighting:no
  • environmental protection device:no

Product Specification:

  • External dimensions (*): 7.0 x 5.3 x 3.5m.
  • Internal dimensions (*): 6.9 x 3.9 x 2.7m.
  • Entrance width: 3m.
  • Entrance height: 2.7m.
  • Ventilation capacity (m3 / h): 21000.
  • Ventilation speed (m / s): 0.25 - 0.35.
  • Air circulation (times / h): 305.
  • Maximum drying temperature: 60ºC - 80ºC.
  • Fuel consumption (Kg / hour): 6 - 8.
  • Consumption (kW): 9.1.
  • Riello burner (kCal): 183,000.
  • Upper lighting (screens x tubes / kW): 10 x 4 / 36W.
  • Vertical lighting (screens x tubes / kW): no.
  • Drive turbine: 1 x 7.5kW.
  • Extraction turbine: no.
  • Number of motors: 1.
  • Service door: yes..
  • Type of vehicle: Cars.
